1) 36V 250W brushless geared front motor, stable and powerful, inner rotor, smaller and more quieter;
2) comes with 28″ double wall rim and 13G silver spokes, fit for 28″ bikes and some 700C bikes;
3) 36V 13Ah rear battery with rear rack, the range is about 40-50km, comes with 42V 2A charger;
4) the max speed of motor is 25km/h;
5) the max torque of motor is 44N.m;
6) compatible with V-brake and disc brake;
7) requested installation width between forks is 100mm;
8) 36V 15A JYT integrated controller, connected to motor, PAS sensor and 5into1 cable;
9) 36V TFT color LCD display with backlight, 5 assist levels;
10) PAS sensor for left side of bottom bracket, double hall sensor, 12 signals output;
11) thumb throttle, the max speed of throttle is 6km/h;
12) mechanical brake levers;
13) front light, switch with pressing “+” Button for a while on display;2. Packing List

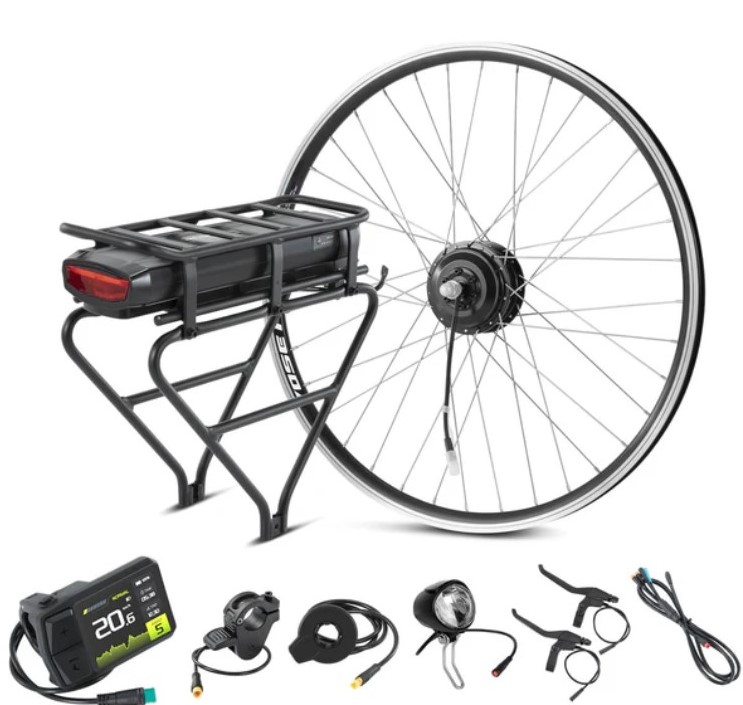

1 x front motor with 28″ rim
1 x rear battery
1 x rear rack
1 x charger
1 x integrated controller
1 x LCD display
1 x PAS sensor
1 x thumb throttle
1 x 5into1 cable
2 x brake levers
1 x front light
1 x controller bag
1 x free tools
3. Additional Information
* The warranty of motor and battery is 18 months. Other parts in kit have warranty of 12 months.
* The shipping takes 2-4 working days in Germany. In other countries, the shipping takes 4-8 working days.
* The max speed of motor is 25km/h. The limit can’t be canceled.
* The max speed of throttle is only 6km/h. The limit can’t be canceled.
* The pedal sensor in kit doesn’t fit for Hollowtech II and Octalink. You will need this pedal sensor:
* The brake levers in kit are not suitable for hydraulic brake. You will need these brake sensors:
* This battery can be bought separately as replacement:
4. Q & A
Q1: What is the difference with R1 Kit 2120100222G?
This R1-Pro motor kit has inner rotor, which is smaller and more quieter.
Q2: Can I set max speed and voltage on display?
No. The max speed is defaulted to 25 km/h. The voltage is defaulted to 36V. These settings are no need to changed. And the limit can’t be canceled.
Q3: Can I change controller or display to increase max speed?
No. Other controllers or displays are not compatible with this kind of 250W rear motor kit.
Q4: The battery doesn’t work?
This rear battery has sleep function. Please activate it by pressing battery indicator button every time before use.
